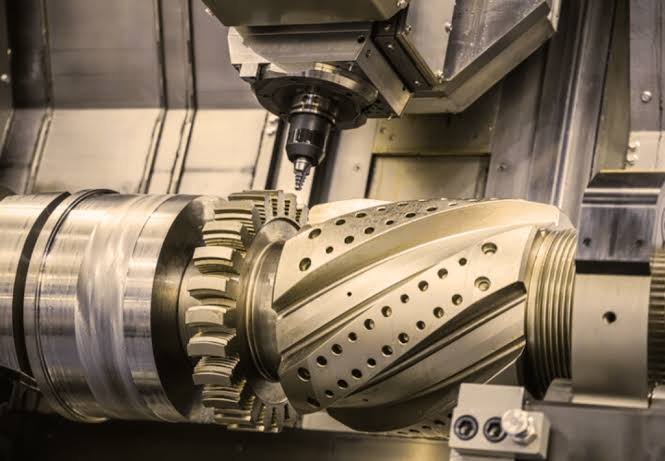

Precision tooling design requires an unbroken chain of traceability from drawing requirement to machining process, where every GD&T callout translates directly into a tooling parameter. Our engineering work applies ASME Y14.5 GD&T analysis to establish traceable links between position, profile, and form tolerances and the tooling stiffness, runout, and setup requirements needed to hold them. We develop complete tooling assemblies and manufacturing documentation — including GD&T-compliant drawings, traceability matrices, and process sheets — that give manufacturers unambiguous instructions for consistent, repeatable production.

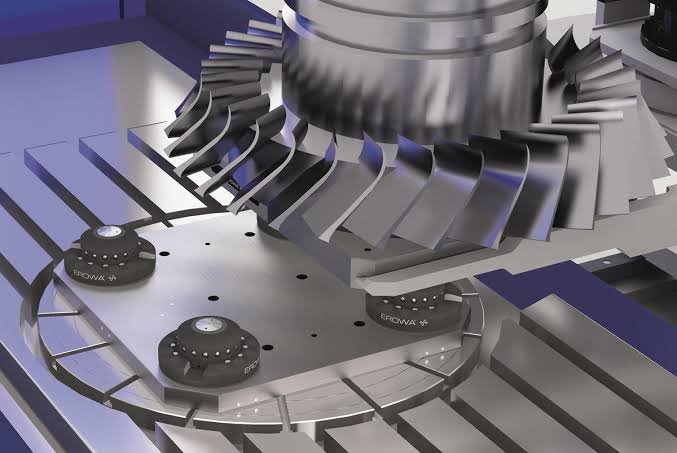

Complete tooling assembly engineering integrating cutting tools, holders, fixtures, and support systems for repeatable, high-precision production.
Complete, production-ready documentation sets that link every drawing requirement to its tooling and process parameters.
